Super Pit [Concept]

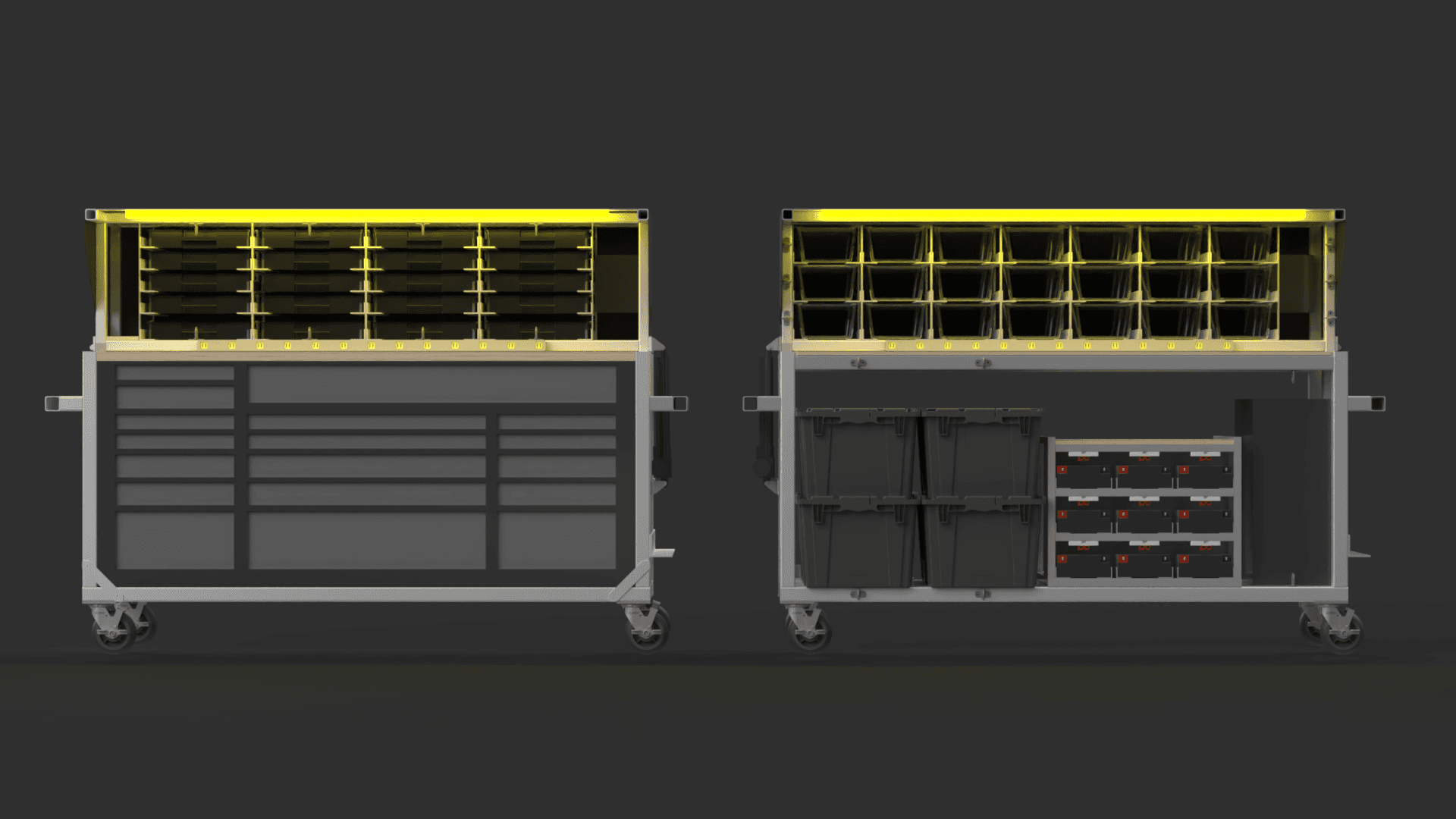

The Super Pit is a custom cart made specifically for FRC robotics competitions. Designed for my team (FRC Team 3082), it differs from other designs by featuring numerous compact storage compartments. We prioritized this during the design process due to our limited closet storage. It is also quite short at a height of about 60 inches, which allows it to fit inside the team's personal trailer. Both carts feature linear actuators that raise the hoods by about 18 inches to maximize work and storage space, as seen below in Images 1 and 2.
